Escotape
Self-adhesive Elastomeric Foam Gasket Tape for Air-duct Flange Connection
Description

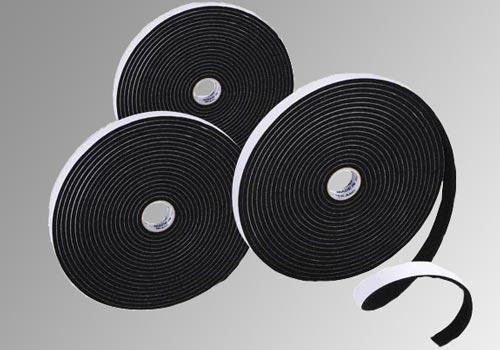

ESCOTAPE is an elastomeric closed cell self-adhesive foam gasket tape for cooling and heating air-duct joint connections to prevent air leakage, reduce vibration/noise and also serves as thermal insulation to prevent condensation and heat transfer. With acrylic pressure sensitive adhesive, ESCOTAPE is easily installed on the surface of the connection joint.
ESCOTAPE Standard Size & Packing
| Code | Description | Packing | Carton |
|---|---|---|---|
| TPEC051510 | ESCOTAPE 5mm x 15mm x 10m | 32 roll | 26 (H) x 29 x 57.5 cm |
| TPEC052010 | ESCOTAPE 5mm x 20mm x 10m | 24 roll | |
| TPEC053210 | ESCOTAPE 5mm x 32mm x 10m | 14 roll | |
| TPEC054010 | ESCOTAPE 5mm x 40mm x 10m | 12 roll |
ESCOTAPE Specification
| MATERIAL | EPDM Rubber |
| COLOR | Black |
| THICKNESS | 0.6 ± 0.1 mm |
| DENSITY | 3-7 lbs/ft3 (0.048-0.112 g/cm3) |
| THERMAL CONDUCTIVITY | @75 °F 0.35 BTU.in/ft2.hr.°F or @24 °C 0.050 W/mK |
| SERVICE TEMPERATURE | -40°F to 220°F (-40°C to 105°C) |
| WATER ABSORPTION | <10% |
| FLAMMABILITY AND SMOKE DENSITY | Class HB UL 94-HB <50 mm @ 60 sec. (IS011925-2) |
| TENSILE STRENGTH | >=38 psi (>=2.7 kg/cm2) |
| ELONGATION | >190% |
| COMPRESSION DEFLECTION | 6-10 psi |
| INITIAL TACK | Max 3 cm (ball number 15/16") |
| ADHESIVE TYPE | Acrylic Pressure Sensitive Adhesive |
