Description

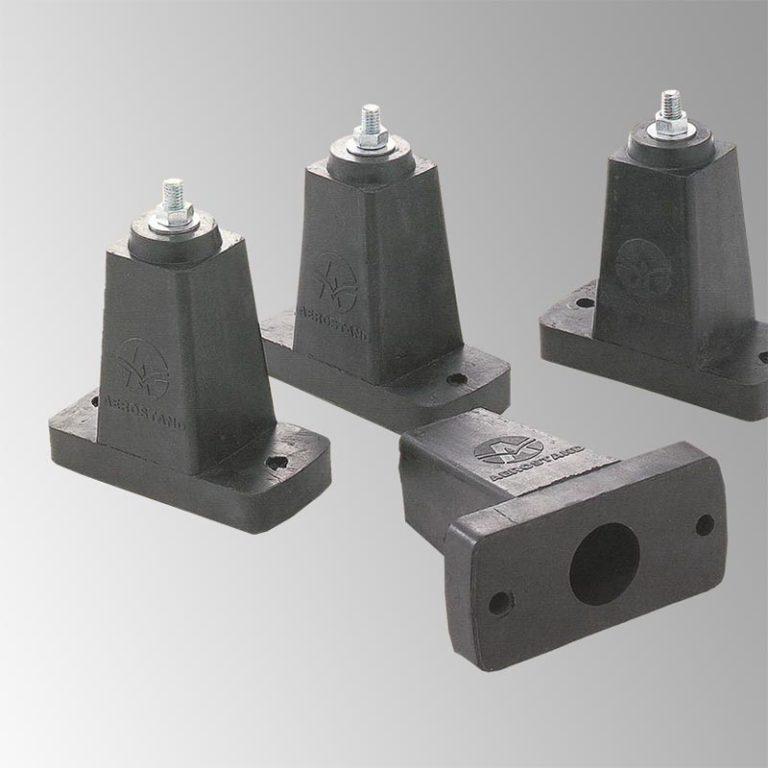

AEROSTAND, made from natural rubber blended with EPDM synthetic rubber, is a load supporter especially designed for air-condensing units. This stand possesses both high compressive strength and good weathering resistance.
AEROSTAND can withstand loads of up to 60 kgs. per piece. Easy to install with bolt & nut prefixed.
AEROSTAND is very effective in reducing vibration and noise level. Reduced vibration helps prolong service life of the air-condensing unit.
Available in 2 sizes:
- 100 mm (4″)high
- 75 mm (3″)high
AEROSTAND Specification
| MATERIAL | NR/EPDM Blended Rubber |
| COLOR | Black |
| TENSILE STRENGTH | Minimum 6.5 Mpa |
| ELONGATION | Minimum 250 % |
| HARDNESS | 701(+-5) Shore A |
| COMPRESSION STRENGTH AT 10% DEFLECTION | Minimum 0.75 N/mm2 |
| MAXIMUM COMPRESSION STRENGTH | Minimum 5.0 N/mm2 |
| TEAR STRENGTH | Minimum 15 kgf/cm |
Size Available
| Product Code | Height | Packing | Carton Size |
|---|---|---|---|
| AS 075 | 75 mm (3") | 18 set / carton | 32.5 x 38.5 x 23 |
| AS 100 | 100 mm (4") | 18 set / carton | 32.5 x 38.5 x 28 |
