Description

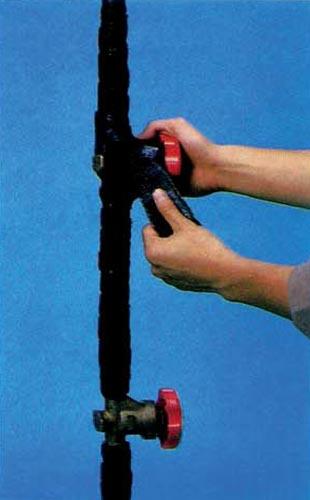

EVERSEAL INSULATION TAPE is specially designed for all types of climate. It insulates cold pipes for all kinds of air conditioners used in cars, homes, freezers and refrigerators. Helps stop condensation problems. Ideal for retarding heat gain in cold pipes and preventing heat loss in hot pipes. EVERSEAL INSULATION TAPE is an effective sound dampening material, and it can also be used for gasketing purposes
EVERSEAL INSULATION TAPE sticks to all kinds of dry metals. It seals tightly without drying.
It is flexible and does not shrink nor melt within the service temperature of -20 F (-29 0 C) to +200 ” F (+93 0 C)
EVERSEAL Specification
Standard size: 1/8– thick, 2″ wide and 30″ long per roll (3 mm. x 50 mm. x 9.1 m.) ± 3%

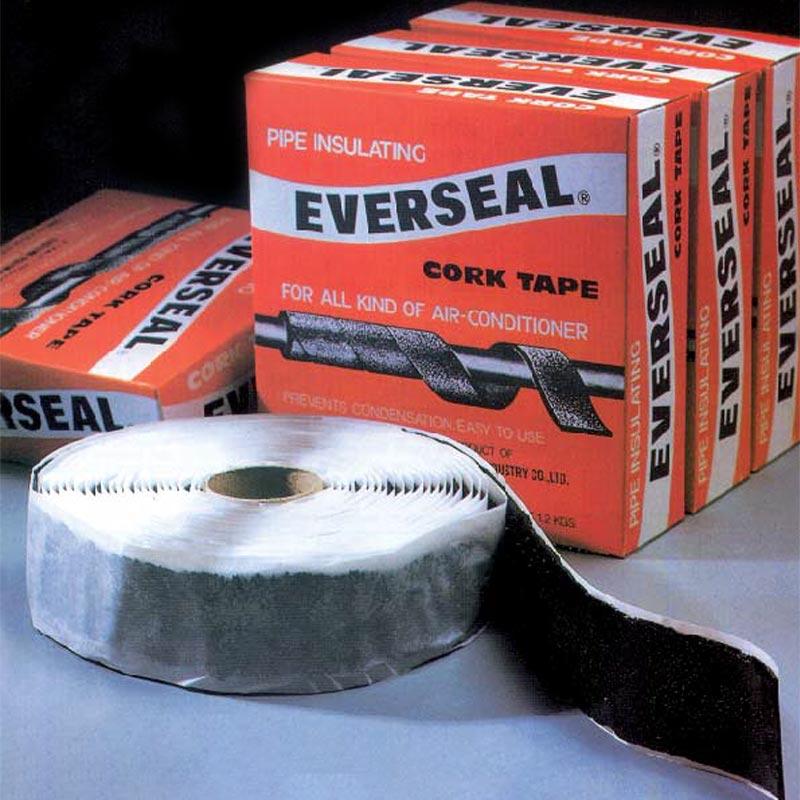

Packing : One roll of Everseal cork tape wrapped in a plastic bag and packed into one individual box. (10 boxes in one carton)
EVERSEAL Physical Properties
| Composition | Polymer based material containing synthetic rubbers, asphalt and approximately 50% cork by volume. It has a grainy rubber-like consistency and contains no asbestos |
| Color | Black |
| Density | approx. 0.95g./cm2 ASTM D-1667 |
| Odor | only slight odor. Can be used without danger of con-tamination |
| Thermal Conductivity | approx.0.60 BTU/hr/ft2/°F/in at 75 °F |
| Water Vapor Transmission | 0.08 perm-in (AST IV1 E 96) |
| Water Absorption | less than 0.20% by weight (ASTM D 1056) |
| Initial Tack | less than 1 2.5 mm. (ASTM D 3121 ball # 15/32") |
| Ozone Resistance | Good |
| Temperature Range | -20 F (-29 ° C) to +200° F (+93 °C) |
Thickness to Prevent Pipe Condensation
| Ambient Temperature and %RH | Pipe Temperature | |
|---|---|---|
| 50 F (10 C) | 32 F (0 C) | |
| 77 F (25 C) & 50% RH | Double Layer | Triple Layer |
| 85 F (29 C) & 70% RH | Double Layer + Double Layer | Triple Layer + Triple Layer |
